turn my floor plan into drawing
Last Post 08 May 2009 10:12 PM by JeffD. 6 Replies.
Printer Friendly
Sort:
PrevPrev NextNext
You are not authorized to post a reply.
Author Messages
vanUser is Offline
New Member
New Member
Send Private Message
Posts:4

--
28 Apr 2009 11:26 AM
have decided on floor plan for sip house over icf basement---now i need to turn into structural plans to begin getting quotes---any recommendations for someone with sip expieriance---i am building in boone nc----thanks


trigem1User is Offline
Basic Member
Basic Member
Send Private Message
Posts:123

--
28 Apr 2009 12:00 PM
Van,

The easiest thing to do would be contact your SIP supplier, and ask if they have engineering and design services. Make sure you provide them with any pertinant local codes, such as wind loads, snow loads, things like that. If they don't do this, contact a local design engineer with SIP experience, and have them provide your SIP supplier with drawings and structural specs. If that doesn't work, go with one of the bigger providers like Porter, R-Control or Premier that do provide engineering and design services.

Steve
GrandCountyIPs.com


Steve Etten
PolycoreUser is Offline
New Member
New Member
Send Private Message
Posts:79

--
01 May 2009 11:34 AM

Van,

Steve is right; any major provider will have Design and Engineering staff. Bring in your plans and they would be happy to provide an estimate. I know that our company always works off standard blue prints and we design and engineer our system around them. Most times we are able to manufacture your product to the exact plans you had in mind. From time to time the odd window may have to be moved over to accommodate for point loads. Make sure that whoever you decide to go with provides engineered stamped drawings. This will ensure that everything has been accounted for.


Best of luck to you.



Polycore Canada Inc.<br>www.polycorecanada.com<br>1-877-765-9267
barkri12User is Offline
New Member
New Member
Send Private Message
Posts:17

--
04 May 2009 01:31 AM

Steel SIPs

What is it? -

Steel SIPs, or Steel Structural Insulated Panels, are structural framing panels, about 4" wide, made of densely packed expanded polystyrene, commonly referred to as EPS, sandwiched between two exterior sheets of galvanized steel.


cmkavalaUser is Offline
Veteran Member
Veteran Member
Send Private Message
Posts:4327
Avatar

--
04 May 2009 06:05 AM
Posted By barkri12 on 05/04/2009 1:31 AM

Steel SIPs

What is it? -

Steel SIPs, or Steel Structural Insulated Panels, are structural framing panels, about 4" wide, made of densely packed expanded polystyrene, commonly referred to as EPS, sandwiched between two exterior sheets of galvanized steel.
barkri12;

Steel sips are same technlogy with steel skins instead of OSB

check out  http://www.storyq.net/boxes/7417

along with more info and connection details on the right side of web page


Chris Kavala<br>[email protected]<br>1-877-321-SIPS<br />
cmkavalaUser is Offline
Veteran Member
Veteran Member
Send Private Message
Posts:4327
Avatar

--
04 May 2009 12:48 PM
Posted By barkri12 on 05/04/2009 1:31 AM

Steel SIPs

What is it? -

Steel SIPs, or Steel Structural Insulated Panels, are structural framing panels, about 4" wide, made of densely packed expanded polystyrene, commonly referred to as EPS, sandwiched between two exterior sheets of galvanized steel.

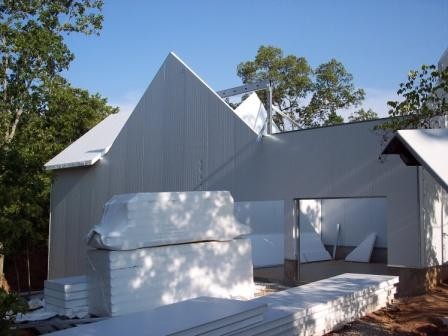

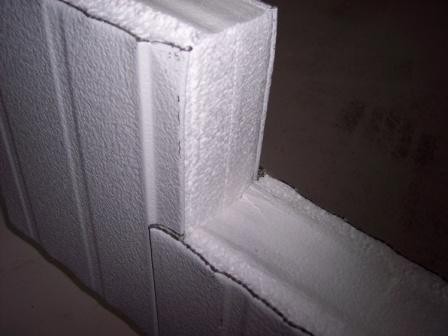

Attachment: 100_1591.jpg
Attachment: SIP example.JPG
Attachment: Peeples2 012.JPG

Chris Kavala<br>[email protected]<br>1-877-321-SIPS<br />
JeffDUser is Offline
Basic Member
Basic Member
Send Private Message
Posts:282
Avatar

--
08 May 2009 10:12 PM

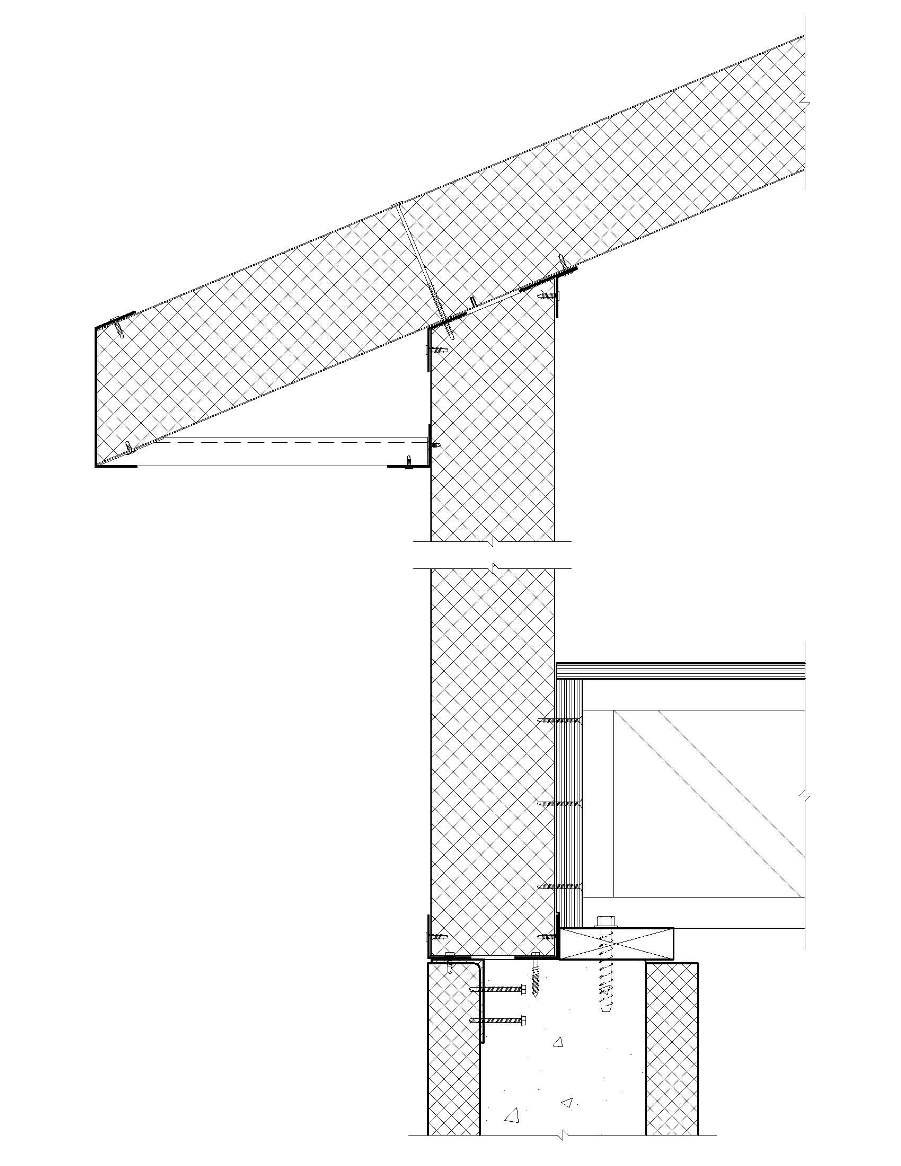

If you are looking for engineering/design drawings for steel SIPs I would be glad to help you. Here is a section drawing of metal SIPs on a ICF basement.

Attachment: ICF Metal SIP Cold Climate Section.jpg

Metal SIP Building Designer<br>jeff@panelfusion(dot com) See us on Facebook
