Anything special an electrician needs to do when wiring an exterior steel sip? Bushing to protect the NM as it exits the steel skin or are the steel sips with steel stud interior partitions all conduit jobs? Just curious.

cmkavala

Registered Users

Veteran Member

Posts:1415

02/24/2009 5:38 AM
Posted By greentree on 02/23/2009 8:23 PM Anything special an electrician needs to do when wiring an exterior steel sip? Bushing to protect the NM as it exits the steel skin or are the steel sips with steel stud interior partitions all conduit jobs? Just curious. work is done with the same methods as using steel studs, exterior work is fed from the backside thru the furred interior and romex may be used

Chris Kavala chris@southernsips dot com 1-877-321-SIPS

JeffD

Registered Users

New Member

Posts:75

03/04/2009 10:15 PM

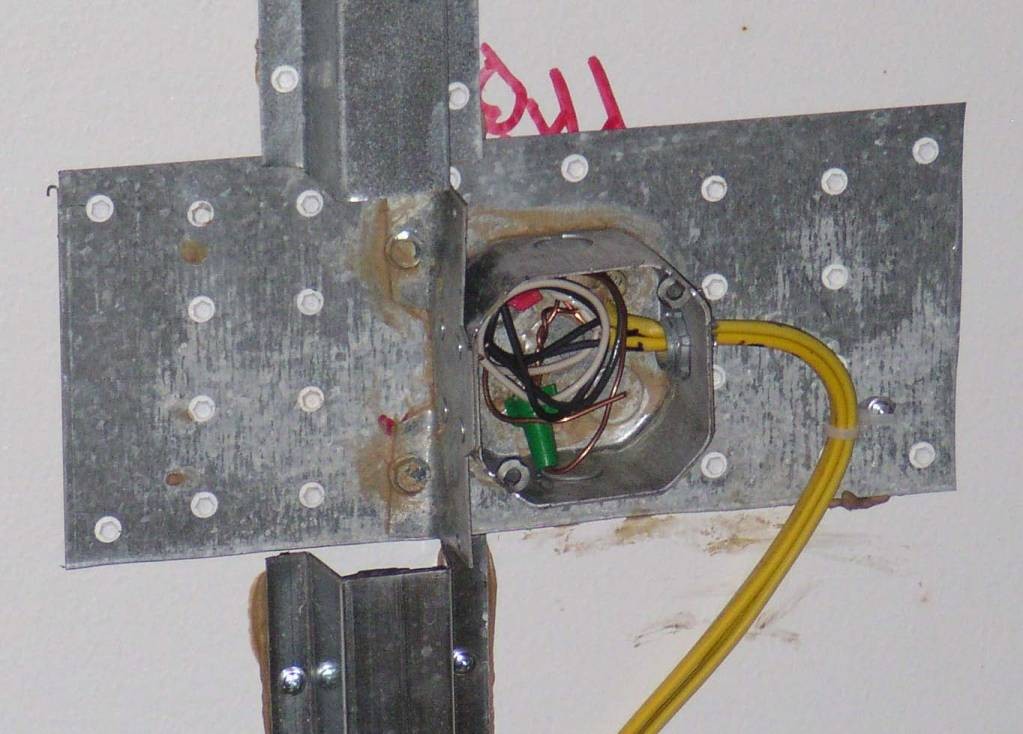

Here is an example electrical wiring when using 1 1/2" hat channels on the interior of metal SIPs. Notice the wire ties, protection plate, duplex box w/ reducer plate and glued in wood shim behind the box. Because of the care taken with this job passed inspection with almost no issues.

Metal SIP Building Designer jeff@panelfusion(dot com)

JeffD

Registered Users

New Member

Posts:75

03/04/2009 11:09 PM

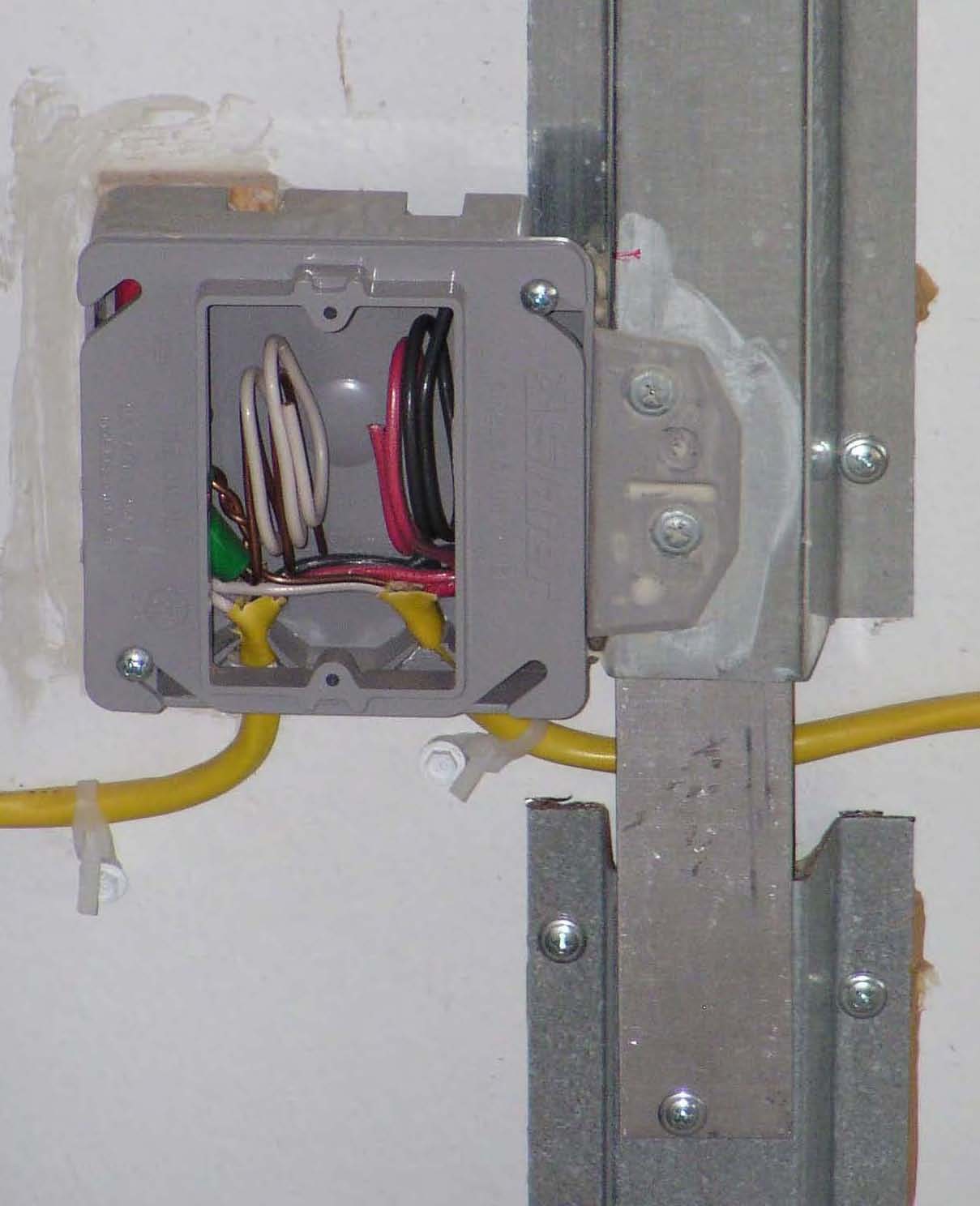

This picture shows a ceiling fan box mounted to overhead metal SIPs that comprise the roof. 1 1/2" Hat channels are present. The bearing plate is 14ga. galv. stl. and the box is secured with #14 screws. Again notice the wire tie. It is a zip tie with an integral eyelet seen in the picture at the wire bend. This may seem labor intensive, but it is the right way to do it. Again this was inspected and approved.

Metal SIP Building Designer jeff@panelfusion(dot com)
